myCobot Pro air parallel grippers can respond quickly and have a high grasping frequency. Fit for ER myCobot 320 2022、 ER myCobot pro 600. It can be used in the fields of workpiece transfer, machine tool loading and unloading, assembly and assembly, and experimental teaching.

Features

Precise Force Control and Flexible Grip

Small Size and Saving Installation Space

Easy to Integrate, Easy to Use

Simple and Robust Robotic Hand

Full Control and Versatile Gripper

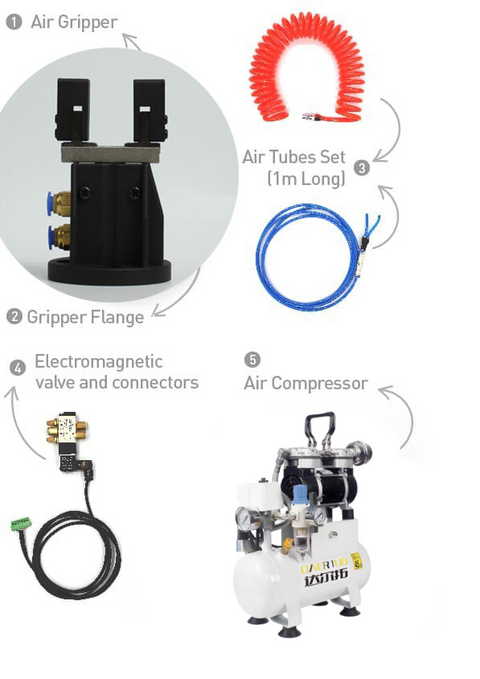

Components

Air Gripper x1
Gripper Flange x1
Air Tubes Set x1 (1m Long)
Electromagnetic valve and connectors x1
Air Compressor x1 （The working voltage of the air pump is 220V/50HZ. Please identify the use environment after purchase.）

Specifications

Cylinder Block	6mm	10mm	16mm	20mm
Width of guide bearing	5	7	9	12
Manner of Execution	Two-way
Minimum pressure	0.15MPa	0.06MPa		0.05MPa
Maximum pressure	0.7MPa
Work Environment	Without magnetic switch: ：-10~+70℃, With magnetic switch: -10~+60℃
Piston speed	50-500mm/s
Permissible energy (J)	0.0125	0.025	0.05	0.1
Buffer	Rubber buffers at both ends

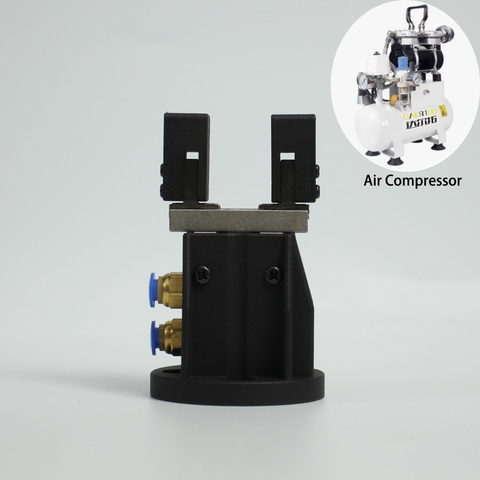

myCobot Pro Air Parallel Grippers & Air Compressor For myCobot 320, myCobot Pro 630
